Product Portfolio

"Dependable Fuze Technology"

Mortar Fuzes

M0829 - Multi Option Proximity Fuze

  • A1 – Force multiplier, Dual HOB, PD and PD Delay, Direct fire capability with electrical arming of 0.8s
  • A3 – Indirect fire applications, Dual HOB, PD and PD Delay, Enhanced electronic overhead safety best suited for indirect firing

M9815 - Proximity Fuze

  • C1 – 1.8m HOB, Use on 60mm mortars for UK & Dutch
  • C2 – 3m HOB, Simplified mechanical design
  • C3 – Ruggedized for the 120mm mortars with strengthened locking ring
  • C7 – 1.8m HOB, Designed for low burst height requirements
  • A4/A5 – Designed for the South African National Defence Force

M9813

  • A1/A2 – Setting of 5 to 99.9s in 0.1 increments
  • Hand settable
  • PDSQ as back up to time function

Specialised for use on

  • 60mm
  • 81mm
  • 120mm
  • 160mm fin stabilized &rocket assisted mortars

Artillery Fuzes

STANAG Inductive setting Protocol

  • M9801 - Multi Option Fuze - Proximity with electronic safety time, PDSQ, PDD & Time

  • M9802 - Point Detonation/Delay Fuze - PDSQ & PDD with delay time of 10 milliseconds (not settable)

  • M9803 - Time Fuze - Setting of 2.0 to 199.9s, PDSQ as backup to time mode

Fuchs Inductive setting Protocol

  • M9121 - Multi Option Fuze - Proximity with electronic safety time, PDSQ & Time
  • M9220 - Time Fuze - Setting of 3.0 to 199.9s, 0.1s increments & PDSQ as backup to time mode
  • M85P13A - Proximity Fuze
  • M85P13PD - Point Detonation/Delay Fuze
  • M85P13T - Time Fuze

Specialised for use on (Standard CD, ERFB, BB & RAP)

  • 105mm
  • 130mm
  • 155mm
  • 120mm rifled mortar projectiles

Setting Devices

  • M15 Hand held Setter - Fuchs Protocol
  • M22 Hand held Setter - STANAG Protocol

Artillery Rocket Fuzes

BM21

  • Designed for use on high velocity 122mm BM21 GRAD and JORD rockets

  • Proximity with PDSQ as a backup to the proximity mode

  • Air driven turbine

BM36

  • Designed for use on high velocity 122mm Extended Range artillery rocket systems
  • Proximity and PD with PDSQ as a backup to the proximity mode
  • Air driven turbine

RO214

  • Designed for use on Pinaka

Specialised for use on

  • 122mm
  • 127mm
  • RO214 for the Pinaka Rocket System

Naval Fuzes

M8953

  • Used on Oto Melara standard, compact and super rapid 76/62 naval gun systems.

  • Employed on HE, HE PFF & Practice rounds.

  • Used against sea skimming missiles, Anti-aircraft role & against surface targets or for shore bombardment.

Specialised for use on (Standard & ER)

  • 76/62mm
  • Versions A2 and A3

Air Weapon Fuze

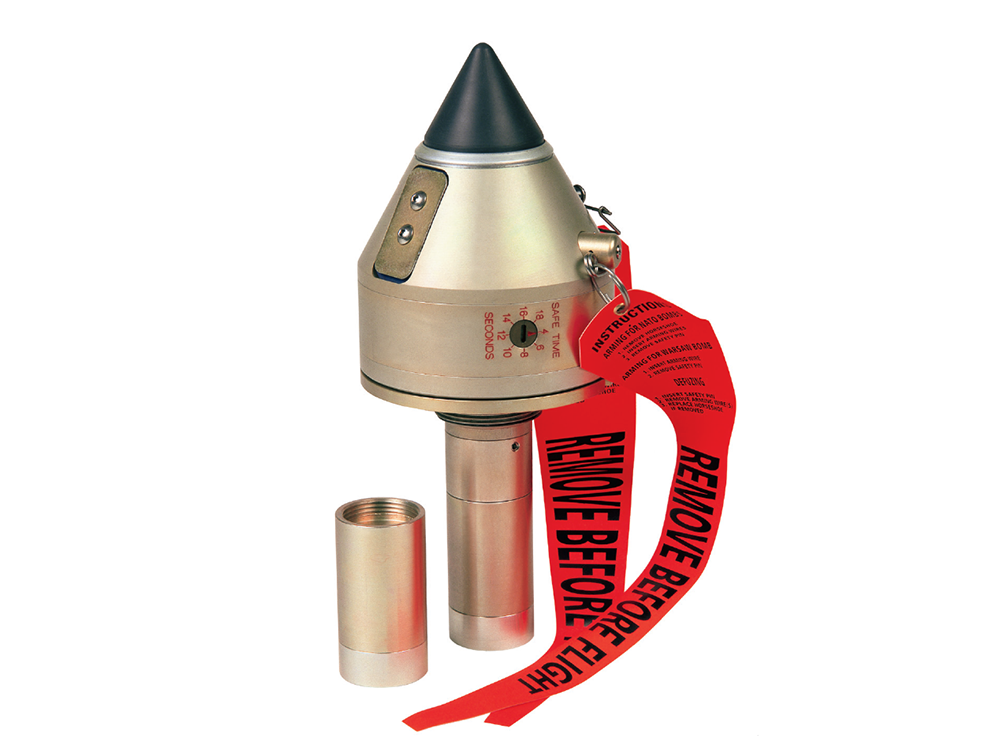

AB400 Electronic Proximity Fuze

  • Air driven turbine

  • All calibres with 2’’ fuze cavity, i.e NATO configuration.

  • All calibres with M52 cavity,i.e WARSAW configuration.

  • MK80 series bombs using T45/M148 Booster.

  • Selectable safe arming time 4-18 in 2 seconds.

  • Visual safe condition indicator.

  • Out of line detonator configuration.

40mm Fuzes

Electronic fuzes for Low, Medium and High-velocity grenades

DH40ABF-A1

  • Nose fuze for 40mm HV timed airburst

  • Precision programmable airburst

  • Precision electronically timed self-destruct

  • No pre-launch stored energy, setback generator powered

  • Electronic impact sensing, reliable point detonation (PD)

DH40ESD-A1

  • Nose fuze for 40mm HV PD (Point Detonation)

  • Precision electronically timed self-destruct

  • No pre-launch stored energy, setback generator powered

  • Electronic impact sensing, reliable point detonation (PD)

DH40MPD-A1

  • Nose fuze for 40mm HV PD (Point Detonation) application

  • No self-destruct function is provided

  • DL40MPD and DM40MPD are versions for low and medium velocity

Specialised for use on

  • All ammunition types, HE or HEDP

  • Complies with STANAG-4403

Programmers and Reserve Batteries

Air burst programmers and reserve batteries

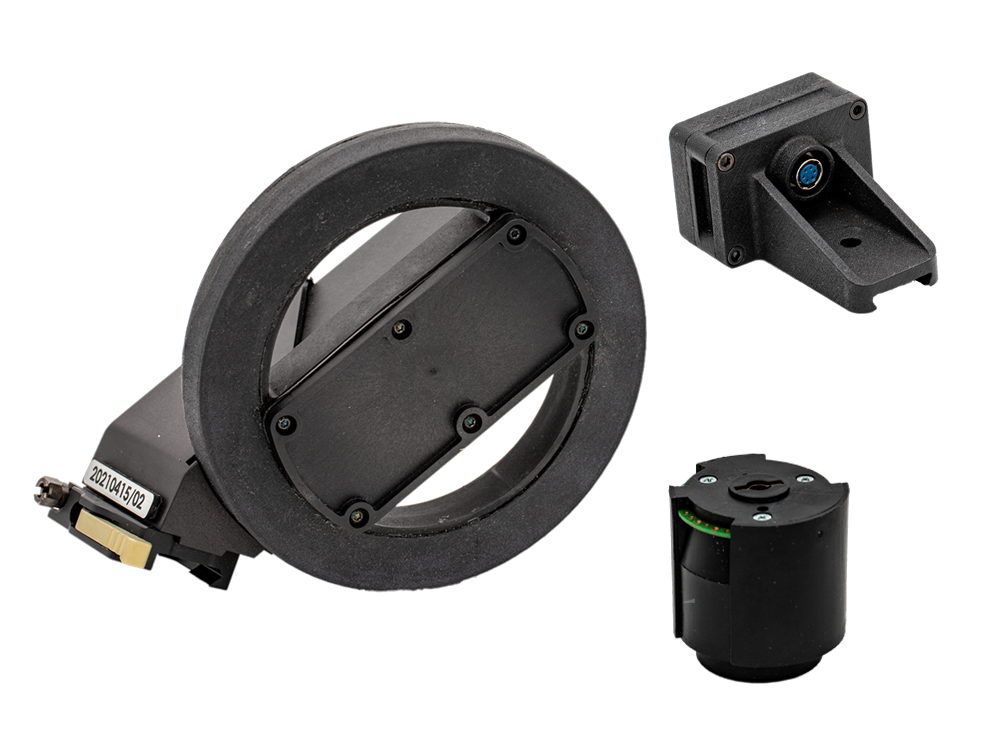

Air Burst Programmers

  • The DRACO ABF fuze requires programming of the desired time value

  • The XMI High Velocity setter is Picatinny-rail mounted to the weapon and interfaces to the sight and fire control system by means of an interface cable

  • For low velocity applications a range of setter options exists with both manual and serial command control interfaces

  • Specialised for us on Mk19, Mk47 and H&K

Reserve batteries

  • The reserve battery offering is based on Lead-Acid technology which is well understood and reliable over broad temperature ranges.

  • Offerings are available for medium caliber (30mm and 40mm) as well as artillery ammunitions.

  • These batteries achieve a storage life in excess of 15 years, with rapid start-up even under extreme cold temperature conditions.
